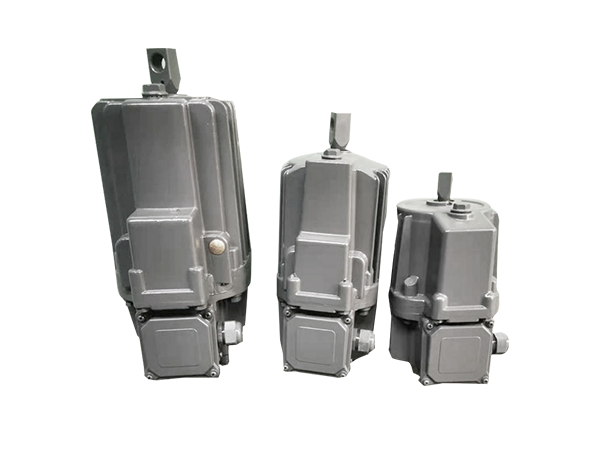

EB.EB1 series electric hydraulic thruster

Application:EB.EB1 electric hydraulic thruster is a compact drive control device that integrates an electric motor, centrifugal pump, and oil cylinder. It is widely used as a drive device for various drum brakes and disc brakes, as well as for various industrial valves, gates, directional swing and rotation (<90 °) devices (mechanisms), and clamping devices.Compliance with standards:The Ed series electric hydraulic thruster complies with DIN15430 standard.Main features:The shell is made of cast aluminum alloy, which is lightweight and aesthetically pleasing;The motor is a non oil immersed structure with F-class insulation, good heat resistance, and long service life;The motor junction box cover is sealed and uses cable stuffing boxes for incoming wires, which are firm and reliable. The electrical enclosure protection level reaches IP65;The motor shaft and push rod have undergone special surface treatment, greatly extending the lifespan of the sealing components;The oil cylinder housing is equipped with a balance chamber on one side, which allows the thruster to be installed in any direction from 0-180 °, thereby expanding its range of use;All seals and bearings are made of world-class products, ensuring reliable sealing and long service life.Working conditions:◆ Altitude:<2000m;◆ Environmental temperature: When the temperature is between -20 ℃ and+50 ℃, use DB-25 hydraulic oil. When the temperature is below -20 ℃, use YH-10 aviation hydraulic oil;Relative humidity: ≤ 90%;Work schedule: intermittent (S3-60%) and continuous (S1);Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);◆ Cable: The specification of the power cable is 4 × 1.5mm ², and the cross-sectional area of the wire can reach 4 × 2.5mm ²;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:EB electric hydraulic thruster modelEB220-50,EB300-50,EB500-60,EB800-60,EB1250-60,EB3000-60,EB500-120,EB800-120,EB1250-120,EB2000-120,EB3000-120,EB1 electric hydraulic thruster modelEB1-25/4,EB1-25/5,EB1-40/4,EB1-45/4,EB1-45/5,EB1-4586,EB1-70/5,EB1-90/6,EB1-90/8,EB1-125/6,EB1-125/10,EB1-180/6,EB1-180/8,EB1-180/10,EB1-180/12,EB1-320/6,EB1-320/12,EB1-320/20.Rated thrust: 250-3200NRated travel: 40-200mm

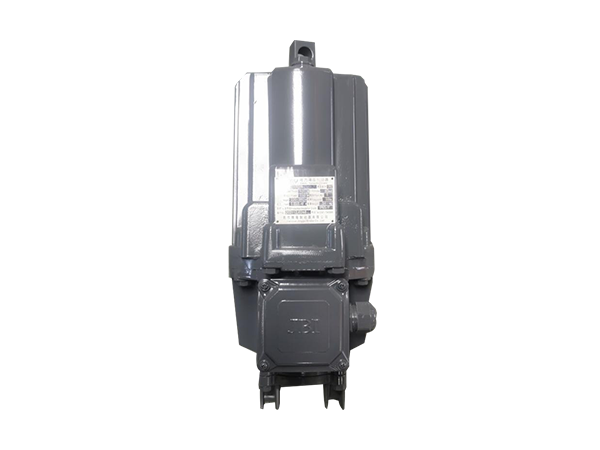

YTD, MYT2 series electric hydraulic thruster

Application:The electric hydraulic thruster with electric magnet maintenance function is a compact drive control device that integrates an electric motor, centrifugal pump, oil cylinder, and DC electromagnet. It is widely used as a drive device for various drum brakes and disc brakes, especially suitable for brakes that require long-term power to maintain an open state. It can also be used for drive control of various industrial valves, gates, directional swing and rotation (<90 °) devices (mechanisms), and clamping devices.Compliance with standards:The DEd series electric hydraulic thruster complies with DIN15430 standard.Main features:The shell is made of cast aluminum alloy, which is lightweight and aesthetically pleasing;The motor is a non oil immersed structure with F-class insulation, good heat resistance, and long service life;The motor junction box cover is sealed and uses cable stuffing boxes for incoming wires, which are firm and reliable. The electrical enclosure protection level reaches IP65;The motor shaft and push rod have undergone special surface treatment, greatly extending the lifespan of the sealing components;The oil cylinder housing is equipped with a balance chamber on one side, which allows the thruster to be installed in any direction from 0-180 °, thereby expanding its range of use;All seals and bearings are made of world-class products, ensuring reliable sealing and long service life.Working conditions:◆ Altitude:<2000m;◆ Environmental temperature: When the temperature is between -20 ℃ and+50 ℃, use DB-25 hydraulic oil. When the temperature is below -20 ℃, use YH-10 aviation hydraulic oil;Relative humidity: ≤ 90%;Work schedule: intermittent (S3-60%) and continuous (S1);Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);◆ Cable: The specification of the power cable is 4 × 1.5mm ², and the cross-sectional area of the wire can reach 4 × 2.5mm ²;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Ed electric hydraulic thruster modelYTD electric hydraulic thruster model● Product model: YTD220-50,YTD300-50,YTD500-60,YTD800-60,YTD1250-60,YTD3000-60,YTD500-120,YTD800-120,YTD1250-120,YTD2000-120,YTD3000-120,YTD4500-80,YTD3000-80MYT2 electric hydraulic thruster modelMYT2-10/25,MYT2-25/4,MYT2-25/5,MYT2-50/6,MYT2-100/6,MYT2-125/6,MYT2-125/10,MYT2-200/6,MYT2-200/12,MYT2-300/6,MYT2-300/12Rated thrust: 220-6300NRated travel: 50-120mm

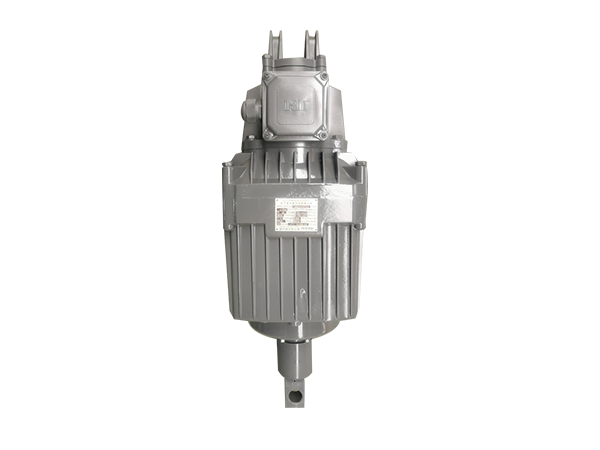

YT1 series electric hydraulic thruster

Application:The YT1 series electric hydraulic thruster is a compact drive control device that integrates an electric motor, centrifugal pump, and oil cylinder. It can be used as a drive device for drum brakes such as YWZ4 and YWZ4-A series, as well as for various industrial valves, gates, directional swing and rotation (vertical upward rotation) devices (mechanisms), and clamping devices.Working conditions:◆ Altitude:<2000m;◆ Environmental temperature: When the temperature is between -20 ℃ and+50 ℃, use DB-25 hydraulic oil. When the temperature is below -20 ℃, use YH-10 aviation hydraulic oil;Relative humidity: ≤ 90%;◆ Work schedule: Short term (S2-30min/60min);Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: YT1-18, YT1-25, YT1-45Z, YT1-90, YT1-125, YT1-180, YT1-320Rated thrust: 180-3200NRated travel: 20-200mm

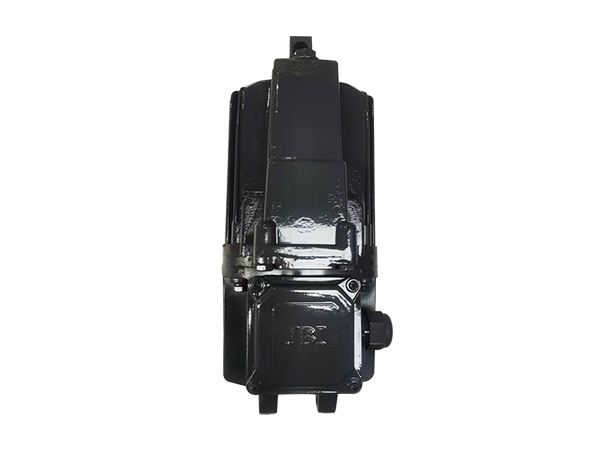

Ed series electric hydraulic thruster

Application:Electric hydraulic thruster is a compact drive control device that integrates an electric motor, centrifugal pump, and oil cylinder. It is widely used as a drive device for various drum brakes and disc brakes, as well as for various industrial valves, gates, directional swing and rotation (<90 °) devices (mechanisms), and clamping devices.Compliance with standards:The Ed series electric hydraulic thruster complies with DIN15430 standard.Main features:The shell is made of cast aluminum alloy, which is lightweight and aesthetically pleasing;The motor is a non oil immersed structure with F-class insulation, good heat resistance, and long service life;The motor junction box cover is sealed and uses cable stuffing boxes for incoming wires, which are firm and reliable. The electrical enclosure protection level reaches IP65;The motor shaft and push rod have undergone special surface treatment, greatly extending the lifespan of the sealing components;The oil cylinder housing is equipped with a balance chamber on one side, which allows the thruster to be installed in any direction from 0-180 °, thereby expanding its range of use;All seals and bearings are made of world-class products, ensuring reliable sealing and long service life.Working conditions:◆ Altitude:<2000m;◆ Environmental temperature: When the temperature is between -20 ℃ and+50 ℃, use DB-25 hydraulic oil. When the temperature is below -20 ℃, use YH-10 aviation hydraulic oil;Relative humidity: ≤ 90%;Work schedule: intermittent (S3-60%) and continuous (S1);Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);◆ Cable: The specification of the power cable is 4 × 1.5mm ², and the cross-sectional area of the wire can reach 4 × 2.5mm ²;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:● Product model: Ed 23/5、Ed 30/5、Ed 40/5、Ed 50/6、Ed 70/5、Ed 80/6、Ed 100/6、Ed 121/6、Ed201/6、Ed 301/6、Ed 50/12、Ed 80/12、Ed 121/12、Ed 201/12、Ed 301/12、Ed 450/12、Ed 630/12、Ed121/8、Ed 201/8、Ed 301/8、Ed 450/8Rated thrust: 220-6300NRated travel: 50-120mm

DYT series electric hydraulic thruster

Application:The DYT series electro-hydraulic push rod is a hydraulic drive device that integrates machinery, electricity, and fluid. It can be widely used for driving and controlling valves, gates, reversing, tilting, swinging, and other machinery in metallurgy, building materials, chemical industry, lifting transportation, and port loading and unloading machinery. It can replace traditional electric push rods, hydraulic cylinders (driven by hydraulic stations), and cylinders (driven and controlled by air pump stations).Compliance with standards:The DEd series electric hydraulic thruster complies with DIN15430 standard.Main features:▲ Compact structure, easy installation, small space occupation, and simple maintenance.There is a bidirectional pressure holding self-locking device in the circuit, which can stop and lock at any position within the specified travel range, while maintaining the same output force.When the mechanism experiences an accident and power outage, the push rod can automatically lock in that position to avoid accidents. The motor shaft and push rod have undergone special surface treatment, greatly extending the lifespan of the sealing components;All hydraulic devices are concentrated inside the machine body, without external pipelines. The oil cylinder seals are made of imported products, with good sealing effect, no oil leakage pollution, and long service life.▲ The electrical control is simple, and by adding various limit switches, it is easy to achieve remote and dangerous area operation control, as well as computer (PLC) automatic control.Working conditions:◆ Altitude:<2000m;Relative humidity: ≤ 90%;Work schedule: intermittent (S3-60%) and continuous (S1);Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:DYT1 series electro-hydraulic push rod:Tension/thrust (10N): 400/630, 500/800, 630/1000, 800/1250, 1250/2000Travel (mm): 620, 900, 1000, 1250, 1400DYTZW series electro-hydraulic push rod:Tension/thrust (10N): 800/1000, 1250/1600, 2000/2500, 3200/4200, 5000/6500, 7500/10000Travel (mm): 400, 550, 800, 1000, 1400, 1800DYTP series electro-hydraulic push rod:Tension/thrust (10N): 1250/1600, 2000/2500, 3200/4000, 5000/6500, 8000/10000, 11500/15000Travel (mm): 550, 800, 1000, 1400, 1800, 2200

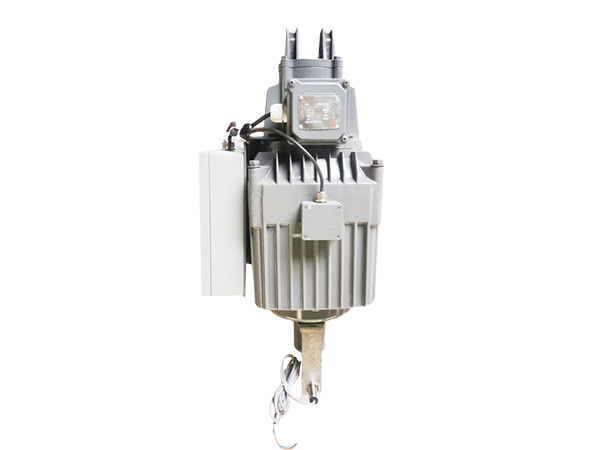

DEd series electric hydraulic thruster

Application:The electric hydraulic thruster with electric magnet maintenance function is a compact drive control device that integrates an electric motor, centrifugal pump, oil cylinder, and DC electromagnet. It is widely used as a drive device for various drum brakes and disc brakes, especially suitable for brakes that require long-term power to maintain an open state. It can also be used for drive control of various industrial valves, gates, directional swing and rotation (<90 °) devices (mechanisms), and clamping devices.Compliance with standards:The DEd series electric hydraulic thruster complies with DIN15430 standard.Main features:The shell is made of cast aluminum alloy, which is lightweight and aesthetically pleasing;The motor is a non oil immersed structure with F-class insulation, good heat resistance, and long service life;The motor junction box cover is sealed and uses cable stuffing boxes for incoming wires, which are firm and reliable. The electrical enclosure protection level reaches IP65;The motor shaft and push rod have undergone special surface treatment, greatly extending the lifespan of the sealing components;The oil cylinder housing is equipped with a balance chamber on one side, which allows the thruster to be installed in any direction from 0-180 °, thereby expanding its range of use;All seals and bearings are made of world-class products, ensuring reliable sealing and long service life.Working conditions:◆ Altitude:<2000m;◆ Environmental temperature: When the temperature is between -20 ℃ and+50 ℃, use DB-25 hydraulic oil. When the temperature is below -20 ℃, use YH-10 aviation hydraulic oil;Relative humidity: ≤ 90%;Work schedule: intermittent (S3-60%) and continuous (S1);Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);◆ Cable: The specification of the power cable is 4 × 1.5mm ², and the cross-sectional area of the wire can reach 4 × 2.5mm ²;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:● Product model: DEd500-60（120）、DEd800-60（120）、DEd1250-60（80、120）、DEd2000-60（80、120）、DEd3000-60（80、120）、DEd4500-80（120）Power (W): 40Power supply (Nm): 110/220V;  220V/380V     AC 50/60 Hz (other power levels can be customized according to requirements)Rated thrust: 500-4500NRated travel: 60-120mm
