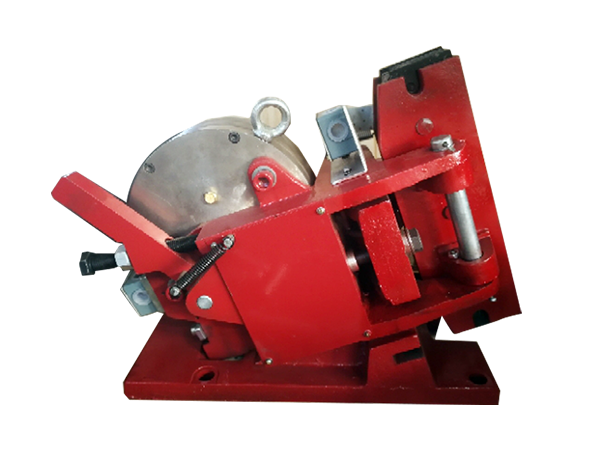

SP series pneumatic failure protection brake

Application:Compared with drum brakes, SP series fail safe disc brakes have the advantages of compact structure, large braking force, and easy installation. They are mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:ADP caliper disc brake technology requirements comply with JB/T10917-2008 standard.Main features:▲ Strong braking force, low maintenance cost, equipped with automatic compensation device for pad wear (stable braking torque), short response time.▲ Large installation tolerance: Brake disc end face runout, value ± 0.2mm. The perpendicularity deviation of the base relative to the disc, large value ± 4%.▲ Deviation of the center distance of the brake disc relative to the base, with a maximum value of ± 2.5mm;Working conditions:◆ Environmental temperature: -20 ℃~+50 ℃There must be no flammable or explosive gases in the surrounding work environment.The relative humidity of the air should not exceed 90%.The altitude of the usage location complies with GB755-2008.Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: 450SP, 5SP, 4SP, 3SP● Braking force: 1650-10170N

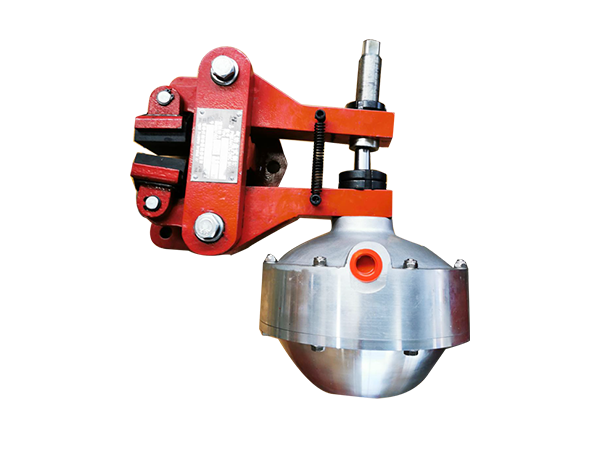

QPN and CQPN series pneumatic caliper disc brakes

Application:QPDN and CQPDN series pneumatic disc brakes are widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:The QPN series is a normally closed design: spring brake, pneumatic release (opening); The CQPN series is a normally open design: air pressure braking, spring release, braking force can vary with changes in air pressure, and can be flexibly changed according to needs during use;▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is better to install it horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product model: QPD □, CQPD □Applicable disc diameter: Ø D ≥ 610mm

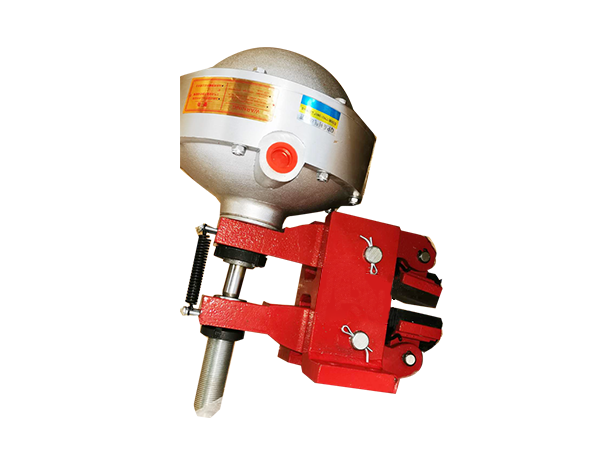

QPL-B (CQPL-B) series pneumatic caliper disc brake

Application:The QPL-B (CQPL-B) series pneumatic disc brake is widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:The QPL-B series is a normally closed design: spring brake, pneumatic release (opening); The CQPL-B series is a normally open design: air pressure braking, spring release, braking force can vary with changes in air pressure, and can be flexibly changed according to needs during use;▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is installed horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product model: QPL2.7-BProduct model: CQPL12.7-BApplicable disc diameter: Ø D ≥ 200mm

QPL-A (CQPL-A) series pneumatic caliper disc brake

Application:The QPL-A (CQPL-A) series pneumatic disc brake is widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:The QPL-A series is a normally closed design: spring brake, pneumatic release (opening); The CQPL-A series is a normally open design: air pressure braking, spring release, braking force can vary with changes in air pressure, and can be flexibly changed according to needs during use;▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, which is a horizontal installation; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: QPL2.7A-A, QPL12.7B-AProduct models: CQPL12.7A-A, CQPL12.7B-AApplicable disc diameter: Ø D ≥ 200mm

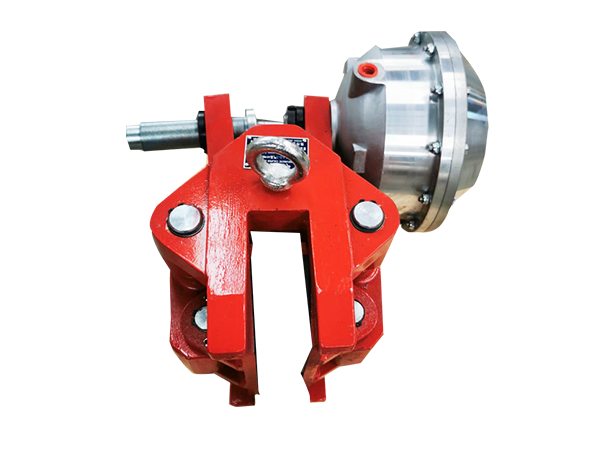

QP-D, CQP-D series pneumatic caliper disc brake

Application:QP-D and CQP-D series pneumatic disc brakes are widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:The QP-D series features a normally closed design with spring braking and pneumatic release (opening); The CQP-D series is a normally open design: air pressure braking, spring release, braking force can vary with changes in air pressure, and can be flexibly changed according to needs during use;▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is installed horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: QP-D, CQP-DApplicable disc diameter: Ø D ≥ 610mm

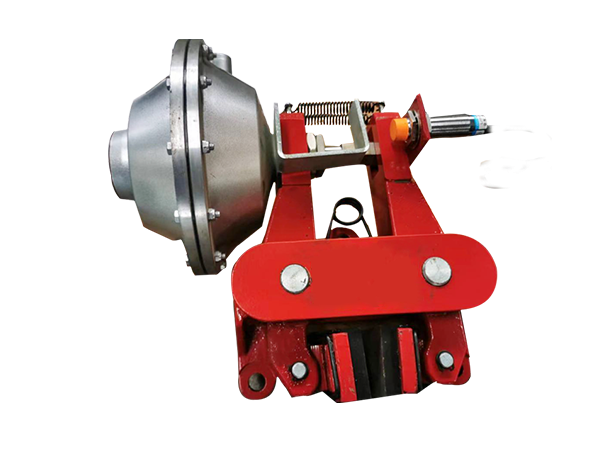

QP-C series pneumatic caliper disc brake

Application:The QP-C series pneumatic disc brake is widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:The QP-C series is a normally closed design: spring braking, pneumatic release (opening) with built-in automatic compensation, no need to adjust the friction plate clearance.▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is installed horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: QP12.7-C, QP15-CApplicable disc diameter: Ø D ≥ 200mm

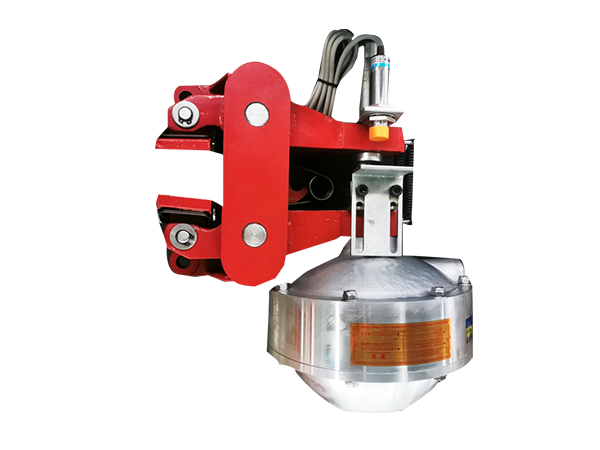

QP and CQP series pneumatic caliper disc brakes

Application:QP □ and CQP □ series pneumatic disc brakes are widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ QP □ series is a normally closed design: spring brake, pneumatic release (opening); The CQP □ series is a normally open design: air pressure braking, spring release, braking force can vary with changes in air pressure, and can be flexibly changed according to needs during use;▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is better to install it horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product model: QP □, CQP □Applicable disc diameter: Ø D ≥ 200mm

PD series pneumatic caliper disc brake

Application:The PD series pneumatic disc brake is widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:The PD series features a normally closed design with spring braking and pneumatic release (opening)▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is installed horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: PDA5, PDA10Product models: PDB5, PDB10, PDB19Product models: PDC5, PDC10Product models: PDD14, PDD32Product models: PDE5, PDE10,Product models: PDCA2, PDCA4, PDCA8, PDCA14Applicable disc diameter: Ø D ≥ 200mm

PDA series pneumatic disc brake

Jiaozuo Linrui Brake Co., Ltd. is a manufacturer of various transmission equipment such as electric hydraulic brakes, electric hydraulic thrusters, hydraulic disc brakes, electromagnetic disc brakes, pneumatic disc brakes, electromagnetic block brakes, explosion-proof electric hydraulic thrusters, explosion-proof electric hydraulic compression brakes, wind power yaw brakes, high-speed shaft brakes, wind power brake pads, disc brake friction pads, electric hydraulic brake pads, electromagnetic clutches, electromagnetic brakes, brake motors, etc. We have many years of sales and experience in wind power, lifting, metallurgy, ports, water conservancy related products and services.

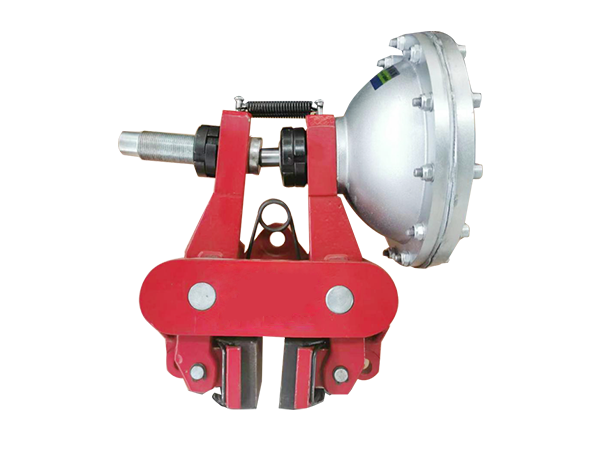

CQP-A/B/F series pneumatic caliper disc brake

Application:CQP-A/B/F series pneumatic disc brakes are widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:CQP-A/B/F series is a normally open design: air pressure braking, spring release, braking force can change with the change of air pressure, and can be flexibly changed according to needs during use;▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is installed horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 7 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: CQP10-A, CQP10-B, CQP10-F, CQP20-A, CQP20-B, CQP20-F, CQP38-A, CQP38-B, CQP38-FCQPL38IA-,CQPL38I-BApplicable disc diameter: Ø D ≥ 200mm

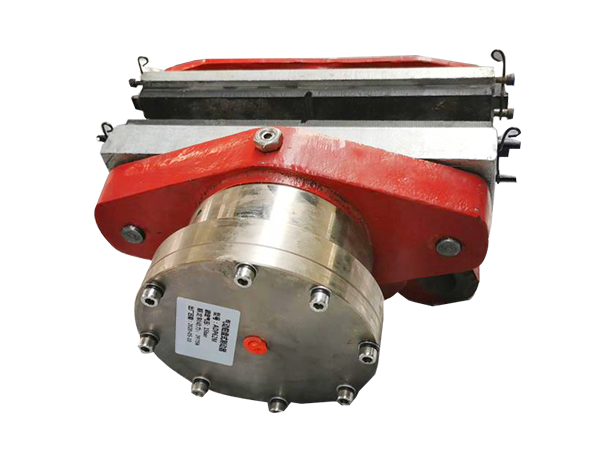

ADP series pneumatic disc brake

Application:ADP series pneumatic disc brakes are widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:ADP caliper disc brake technology requirements comply with JB/T10917-2008 standard.Main features:The PD series features a normally closed design with spring braking and pneumatic release (opening)▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Installation method: Suitable for horizontal or vertical axis braking. When using the horizontal axis braking method, it can be installed at any angle around the brake disc, but it is installed horizontally; When using the vertical axis braking method, the angle is not limited. A brake disc can be installed with one brake or two or more brakes, but it is recommended to install two or more brakes symmetrically as much as possible;▲ All power sources do not need to be separately set up and can be connected to existing air compression stations for use. A speed regulating valve is installed in the gas supply line, and the braking time can be infinitely adjusted.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Work pressure: 15 bar;Gas source requirements: The compressed air entering the gas bag should be dry, clean, and free of corrosive gases;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: ADP60M, ADP61M, ADP62M●  Braking force: 3975-7425N
