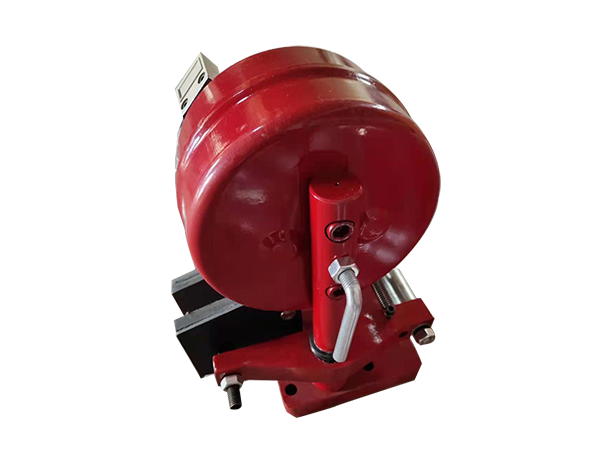

Sim645 series electromagnetic disc brake system

Application:The 645 series fail safe disc brake has the advantages of compact structure, large braking force, and easy installation compared to drum brakes. It is mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Strong braking force, similar to working brakes, low maintenance costs, equipped with automatic compensation device for pad wear (stable braking torque), and short response time.▲ Large installation tolerance: Brake disc end face runout, * maximum value ± 0.2mm. The perpendicularity deviation of the base relative to the disc, * maximum value ± 4%.▲ Deviation of the center distance of the brake disc relative to the base, * maximum value ± 2.5mm;Working conditions:There is no gas or dust in the surrounding medium that can corrode metals or damage insulation.The surrounding air humidity is less than 90%.During installation, there should be no oil stains or dust inside the friction disc, friction plate, and brake.▲ Series brake coil insulation level: Class B.▲ The power supply is matched with our company's power box for use.Basic parameters:Product model: 645

ST1SE, ST2SE series electromagnetic failure protection brake

Application:Compared with drum brakes, drum brakes have the advantages of compact structure, large braking force, and easy installation. They are mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Strong braking force, similar to working brakes, low maintenance costs, equipped with automatic compensation device for pad wear (stable braking torque), and short response time.▲ Large installation tolerance: Brake disc end face runout, * maximum value ± 0.2mm. The perpendicularity deviation of the base relative to the disc, * maximum value ± 4%.▲ Deviation of the center distance of the brake disc relative to the base, * maximum value ± 2.5mm;Working conditions:There is no gas or dust in the surrounding medium that can corrode metals or damage insulation.The surrounding air humidity is less than 90%.During installation, there should be no oil stains or dust inside the friction disc, friction plate, and brake.▲ Series brake coil insulation level: Class B.▲ The power supply is matched with our company's power box for use.Basic parameters:Product models: ST1SE, ST2SE● Braking force: 35000-70000N

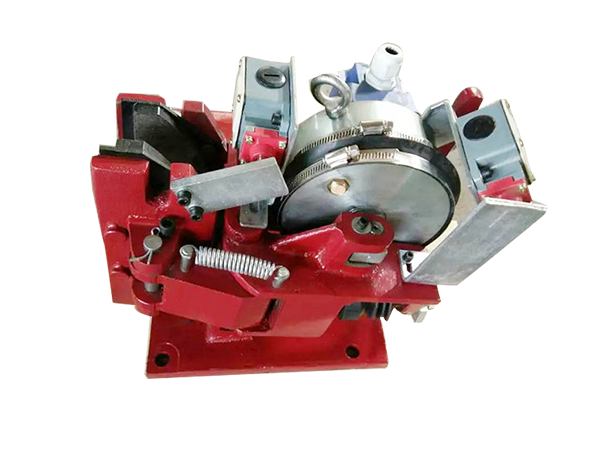

SE series electromagnetic failure protection brake

Application:Compared with drum brakes, SE series fail safe disc brakes have the advantages of compact structure, large braking force, and easy installation. They are mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Strong braking force, similar to working brakes, low maintenance costs, equipped with automatic compensation device for pad wear (stable braking torque), and short response time.▲ Large installation tolerance: Brake disc end face runout, * maximum value ± 0.2mm. The perpendicularity deviation of the base relative to the disc, * maximum value ± 4%.▲ Deviation of the center distance of the brake disc relative to the base, * maximum value ± 2.5mm;Working conditions:There is no gas or dust in the surrounding medium that can corrode metals or damage insulation.The surrounding air humidity is less than 90%.During installation, there should be no oil stains or dust inside the friction disc, friction plate, and brake.▲ Series brake coil insulation level: Class B.▲ The power supply is matched with our company's power box for use.Basic parameters:Product models: 5SE, 450SE, 4SE, 3SE● Braking force: 1650-10170N

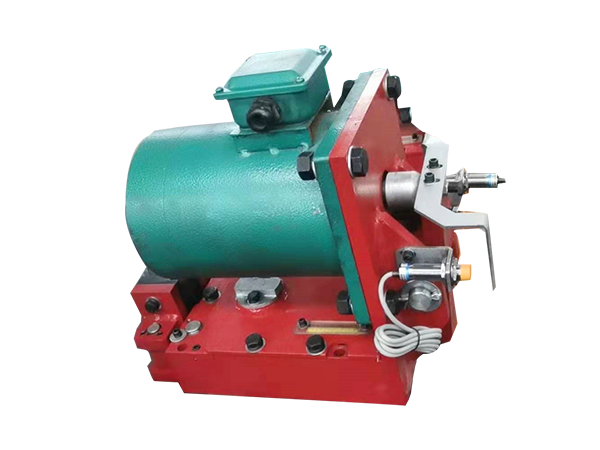

DSK, SK2-M, SK4-M series electromagnetic disc brakes

Application:Compared with drum brakes, SK2-M16 2500D disc brakes have the advantages of compact structure, large braking force, and easy installation. They are mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, and construction machinery.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Normally closed design, (power-off) spring brake, (powered on) electromagnetic release.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Power supply voltage: 220/380V for use with our company's electrical control boxThere are no explosive hazardous media, gases or conductive dust in the surrounding working environment that can corrode metals and damage insulation.Basic parameters:Product models: DSK225-DZ, SK4-M13, SK4-M16, SK2-M13, SK2-M16Applicable disc diameter: Ø D ≥ Ø 200mmBraking force: 70-5800Nm

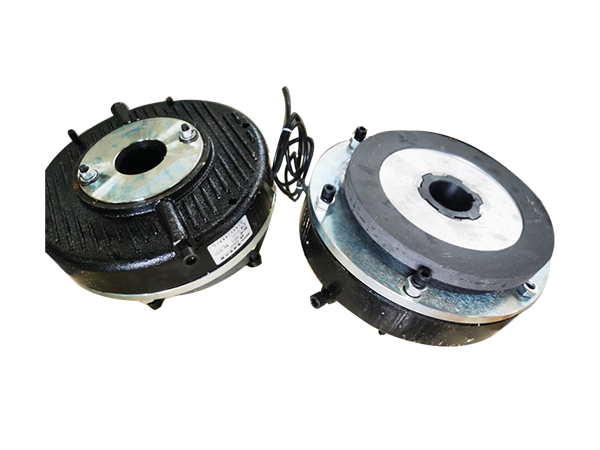

DJPZ series motor disc brake

Application:The DJPZ motor disc brake is an important component of the electrical transmission system, which is paired with the Y series motor to form a new type of YEJ series electromagnetic brake three-phase asynchronous motor. Mainly used in industries such as metallurgy, chemical engineering, construction, mining machinery, etc., to achieve fast parking and accurate positioning, and to safely brake mechanisms. This brake has the advantages of compact structure, easy installation, low noise, high sensitivity, and reliable braking.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Normally closed design, (power-off) spring brake, (powered on) electromagnetic release.Working conditions:▲ The altitude shall not exceed 2000 meters.There is no gas or dust in the surrounding medium that can corrode metals or damage insulation.The surrounding air humidity is less than 90%.During installation, there should be no oil stains or dust inside the friction disc, friction plate, and brake.▲ Series brake coil insulation level: Class B.▲ Power supply 380V, 50Hz, working mode S1 or S3Basic parameters:● Product model: DJPZ114-18,DJPZ133-30,DJPZ150-40,DJPZ170-80,DJPZ202-160,DJPZ244-230,DJPZ280-400,DJPZ300-530● Applicable motor: 1.1-35KW ● Braking force: 18-530Nm

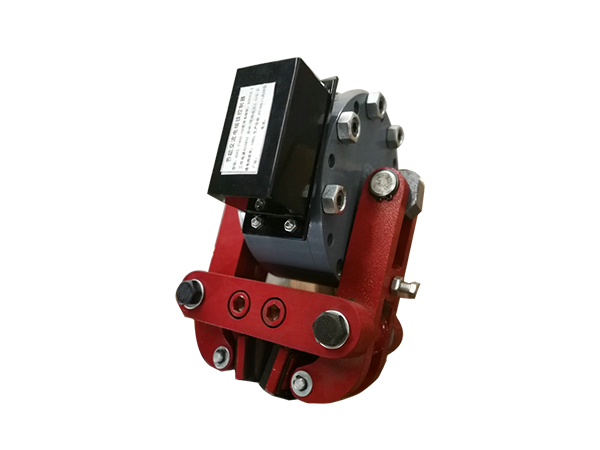

DCPZ series electromagnetic caliper disc brake

Application:The DCPZ series electromagnetic disc brake is widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Normally closed design, (power-off) spring brake, (powered on) electromagnetic release.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Relative humidity: ≤ 90%;Power supply voltage: AC 380V, 50Hz;There are no explosive hazardous media, gases or conductive dust in the surrounding working environment that can corrode metals and damage insulation.Basic parameters:Product models: DCPZ □ -250, DCPZ □ -315, DCPZ □ -400Applicable disc diameter: Ø D ≥ Ø 600mmBraking force: 900-2600Nm

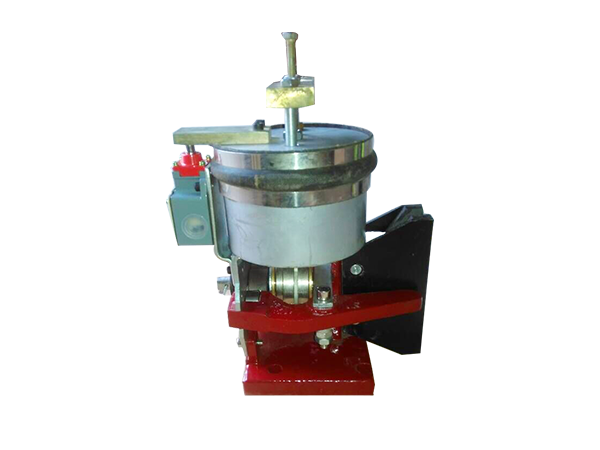

561.560.56SE series electromagnetic failure protection brake

Application:Compared with drum brakes, the 561.560.56SE series fail safe disc brake has the advantages of compact structure, large braking force, and easy installation. It is mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Strong braking force, similar to working brakes, low maintenance costs, equipped with automatic compensation device for pad wear (stable braking torque), and short response time.▲ Large installation tolerance: Brake disc end face runout, * maximum value ± 0.2mm. The perpendicularity deviation of the base relative to the disc, * maximum value ± 4%.▲ Deviation of the center distance of the brake disc relative to the base, * maximum value ± 2.5mm;Working conditions:There is no gas or dust in the surrounding medium that can corrode metals or damage insulation.The surrounding air humidity is less than 90%.During installation, there should be no oil stains or dust inside the friction disc, friction plate, and brake.▲ Series brake coil insulation level: Class B.▲ The power supply is matched with our company's power box for use.Basic parameters:Product models: 560SE, 561SE, 56SE● Braking force: 640-1600N
