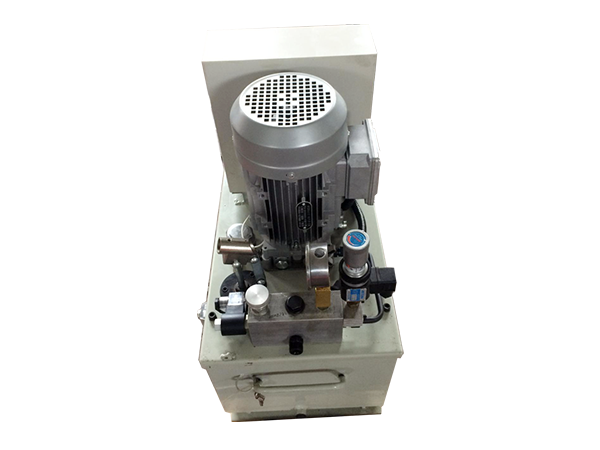

YZ, PYZW.YPA series hydraulic station

Application:The YZ, PYZW, YPA series hydraulic stations are mainly used for supporting the drive of SB, SBD, STSH, YP series safety brakes, and can also be used as supporting drives for other single acting oil cylinders. When adding the suffix - I to the hydraulic station model, it is used to match the single mechanism safety brake, controlling the brake to open and close simultaneously; When adding the suffix - II to the hydraulic station model, it is used to match the dual mechanism safety brake. The brake that controls each oil circuit can be opened and closed simultaneously or operated separately. If used for separate actions of other multiple mechanisms, special instructions should be provided when ordering.The YPA series hydraulic station is mainly used for the matching drive of YLZ series wheel side brakes and YGZ series top rail actuators, and can also be used as other single acting systemsMain features:▲ The main hydraulic components are from well-known domestic and foreign brands, with stable and reliable performance. According to customer requirements, hydraulic components from brands such as Rexroth, Parker, Vickers, etc. can also be selected..▲ Multi functional composite control method, relying on manpower to achieve the pressure up process during power-off maintenance▲ Compact structure, beautiful appearance, stable pressure holding performance,Equipped with a dust cover, it can adapt to outdoor operations;▲ Equipped with manual opening device (manual pump)▲ The electrical control is simple, and by adding various limit switches, it is easy to achieve remote and dangerous area operation control, as well as computer (PLC) automatic control.Working conditions:Relative humidity: ≤ 90%;Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:YZ series disc hydraulic station:Product models: YZ-10-10, YZ-20-10, YZ-10-20, YZ-20-20Applicable products: Suitable for safety brakesRated working pressure (Mpa): 8, 12, 14, 16, 20PYZW series disc hydraulic station:Product models: YPZW-IA, YPZW-IIAApplicable products: Suitable for safety brakes, windproof brakesRated working pressure (Mpa): 8, 10, 12YPA series disc hydraulic station:Product models: YPA1.5, YPA2.0, YPZ3.0Applicable products: Suitable for safety brakes, windproof brakesRated working pressure (Mpa): 8, 10, 12
