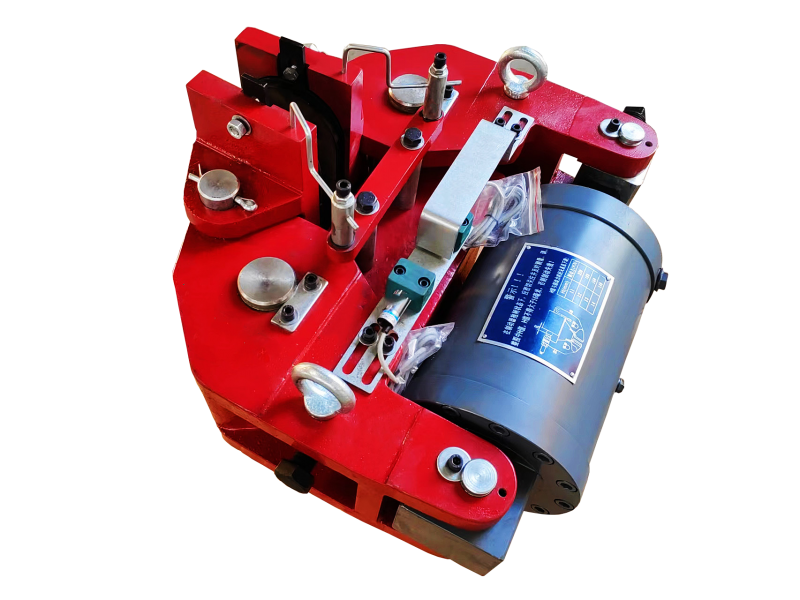

Hydraulic Failure Protection Brake ST3SH-A

Jiaozuo Linrui Brake Co., Ltd. is a manufacturer of various transmission equipment such as electric hydraulic brakes, electric hydraulic thrusters, hydraulic disc brakes, electromagnetic disc brakes, pneumatic disc brakes, electromagnetic block brakes, explosion-proof electric hydraulic thrusters, explosion-proof electric hydraulic compression brakes, wind power yaw brakes, high-speed shaft brakes, wind power brake pads, disc brake friction pads, electric hydraulic brake pads, electromagnetic clutches, electromagnetic brakes, brake motors, etc. We have many years of sales and experience in wind power, lifting, metallurgy, ports, water conservancy related products and services.

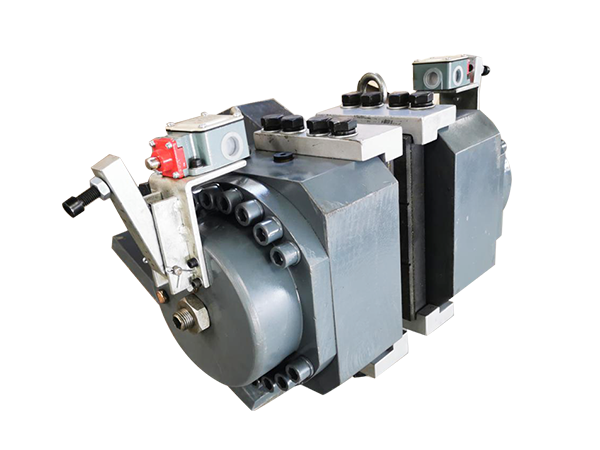

ST (10,16,25,40) SH series safety brake

Application:The ST (10, 16, 25, 40) SH series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts), which can be widely used for emergency safety braking of low-speed shafts in large and medium-sized cranes, port loading and unloading machinery, and boom tilt mechanisms. The working brake and emergency safety brake of mining winches, hoists, and high-power inclined belt conveyors, the safety brake of cable car and cable crane drive mechanisms, and the safety (emergency) brake of low-speed shafts of lifting mechanisms for special cranes such as casting cranes.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Normally closed design, safe and reliable; Specially designed disc spring applies force for braking, and hydraulic drive releases (see hydraulic station sample for details on hydraulic station selection).▲ The action is sensitive and the closing (closing) time is short.▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product model: ST10SH. ST16SH, ST25SH, ST40SH, ST25SH-C, ST16SH-A, ST25SH-AApplicable disc diameter: Ø D ≥ Ø 500mm/Ø D ≥ Ø 600mm/Ø D ≥ Ø 1200mm/Ø D ≥ Ø 1800mm● Braking force: 120KN-400KN

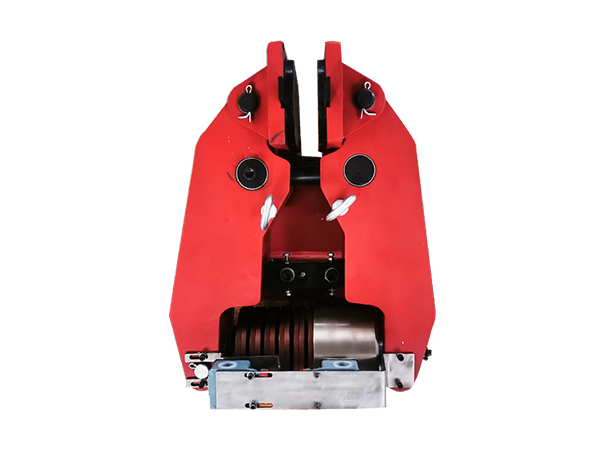

ST (1, 2, 3) SH series safety brake

Application:The STSH series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts), which can be widely used for emergency safety braking of low-speed shafts in large and medium-sized cranes, port loading and unloading machinery, and boom tilt mechanisms. The working brake and emergency safety brake of mining winches, hoists, and high-power inclined belt conveyors, the safety brake of cable car and cable crane drive mechanisms, and the safety (emergency) brake of low-speed shafts of lifting mechanisms for special cranes such as casting cranes.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Normally closed design, safe and reliable; Specially designed disc spring applies force for braking, and hydraulic drive releases (see hydraulic station sample for details on hydraulic station selection).▲ The action is sensitive and the closing (closing) time is short.▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: ST1SH.ST2SH, ST3SH, ST3SH-AApplicable disc diameter: Ø D ≥ Ø 500mm/Ø D ≥ Ø 600mm/Ø D ≥ Ø 1200mm/Ø D ≥ Ø 1800mmBraking force: 35KN-220KN

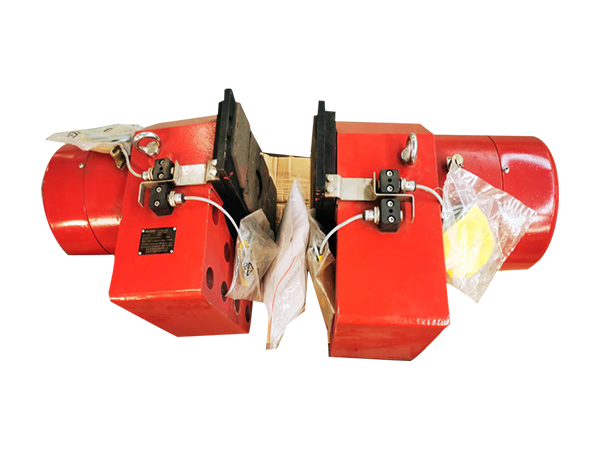

SB series safety brake

Application:The SB series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts), which can be widely used for emergency safety braking of low-speed shafts in large and medium-sized cranes, port loading and unloading machinery, and boom tilt mechanisms. The working brake and emergency safety brake of mining winches, hoists, and high-power inclined belt conveyors, the safety brake of cable car and cable crane drive mechanisms, and the safety (emergency) brake of low-speed shafts of lifting mechanisms for special cranes such as casting cranes.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Normally closed design, safe and reliable; Specially designed disc spring applies force for braking, and hydraulic drive releases (see hydraulic station sample for details on hydraulic station selection).▲ The action is sensitive and the closing (closing) time is short.▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: SB50, SB100, SB160, SB250, SB315, SB400, SB500Applicable disc diameter: Ø D ≥ Ø 500mm/Ø D ≥ Ø 600mm/Ø D ≥ Ø 1200mm/Ø D ≥ Ø 1800mm● Braking force: 36KN-360KN

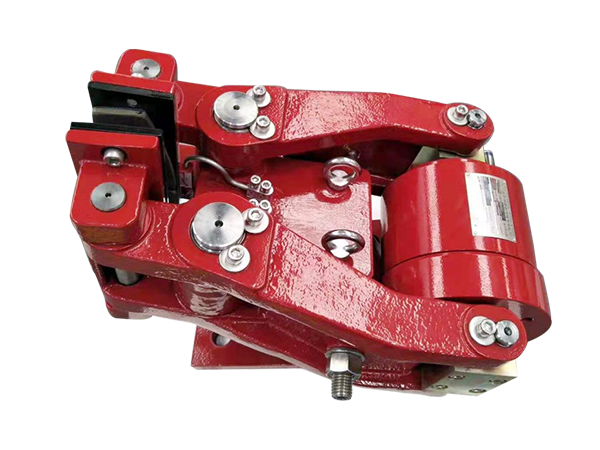

SBD-D series safety brake

Application:The SBD □ - D series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts), which can be widely used for emergency safety braking of low-speed shafts in large and medium-sized cranes, port loading and unloading machinery, and boom tilt mechanisms. The working brake and emergency safety brake of mining winches, hoists, and high-power inclined belt conveyors, the safety brake of cable car and cable crane drive mechanisms, and the safety (emergency) brake of low-speed shafts of lifting mechanisms for special cranes such as casting cranes.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Normally closed design, safe and reliable; Specially designed disc spring applies force for braking, and hydraulic drive releases (see hydraulic station sample for details on hydraulic station selection).▲ The action is sensitive and the closing (closing) time is short.▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: SBD50-D, SBD80-D, SBD100-D, SBD120-D, SBD240-DApplicable disc diameter: Ø D ≥ Ø 600mm● Braking force: 36KN-172KN

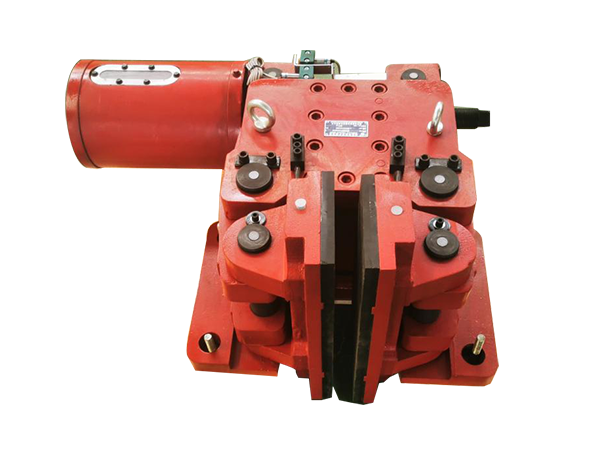

SBD-C, SDHB series safety brakes

Application:The SBD □ - C, SDBH series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts), which can be widely used for emergency safety braking of low-speed shafts in large and medium-sized cranes, port loading and unloading machinery, and boom tilt mechanisms. The working brake and emergency safety brake of mining winches, hoists, and high-power inclined belt conveyors, the safety brake of cable car and cable crane drive mechanisms, and the safety (emergency) brake of low-speed shafts of lifting mechanisms for special cranes such as casting cranes.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Normally closed design, safe and reliable; Specially designed disc spring applies force for braking, and hydraulic drive releases (see hydraulic station sample for details on hydraulic station selection).▲ The action is sensitive and the closing (closing) time is short.▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: SBD250-C, SBD365-C, SBD425-CProduct models: SDBH250-I, SDBH365-I, SDBH425-IApplicable disc diameter: Ø D ≥ Ø 1800mmBraking force: 108KN-306KN

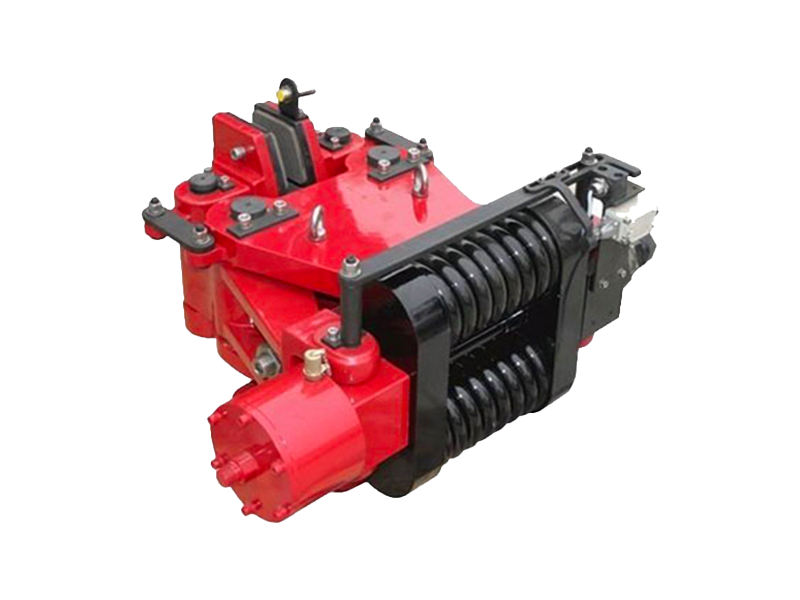

SBD-B series safety brake

Application:The SBD □ - B series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts), which can be widely used for emergency safety braking of low-speed shafts in large and medium-sized cranes, port loading and unloading machinery, and boom tilt mechanisms. The working brake and emergency safety brake of mining winches, hoists, and high-power inclined belt conveyors, the safety brake of cable car and cable crane drive mechanisms, and the safety (emergency) brake of low-speed shafts of lifting mechanisms for special cranes such as casting cranes.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Normally closed design, safe and reliable; Specially designed disc spring applies force for braking, and hydraulic drive releases (see hydraulic station sample for details on hydraulic station selection).▲ The action is sensitive and the closing (closing) time is short.▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: SBD80-B, SBD160BApplicable disc diameter: Ø D ≥ Ø 800mmBraking force: 57KN-115KN1658370723676725.rar

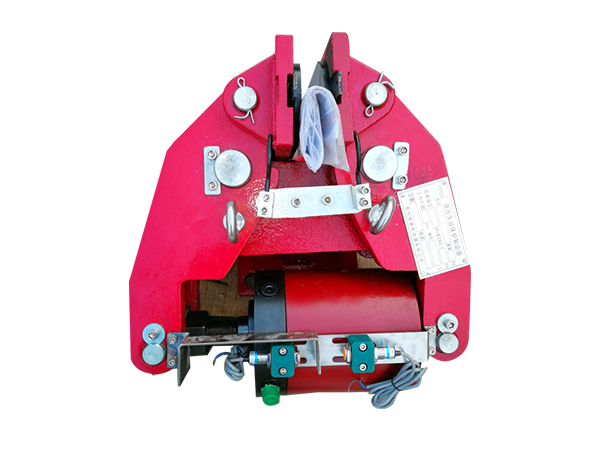

SBD-A series safety brake

Application:The SBD □ - A series hydraulic safety (emergency) brake is a high-power braking device used on low-speed shafts (drum shafts), which can be widely used for emergency safety braking of low-speed shafts in large and medium-sized cranes, port loading and unloading machinery, and boom tilt mechanisms. The working brake and emergency safety brake of mining winches, hoists, and high-power inclined belt conveyors, the safety brake of cable car and cable crane drive mechanisms, and the safety (emergency) brake of low-speed shafts of lifting mechanisms for special cranes such as casting cranes.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Normally closed design, safe and reliable; Specially designed disc spring applies force for braking, and hydraulic drive releases (see hydraulic station sample for details on hydraulic station selection).▲ The action is sensitive and the closing (closing) time is short.▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: SBD100-A, SBD125-A, SBD160-A, SBD200-A, SBD250-A, SBD315-AApplicable disc diameter: Ø 800mm ≤ Ø D ≤ Ø 1800mmBraking force: 72KN-220KN

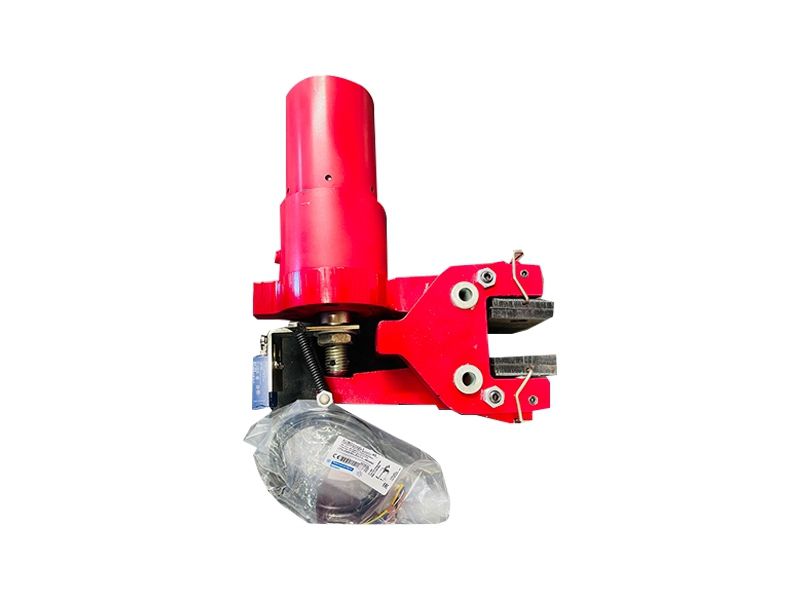

904SH series safety brake

Application:Compared with drum brakes, the 904SH and YP series fail safe disc brakes have the advantages of compact structure, large braking force, and easy installation. They are mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etc,Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ High braking force, low maintenance cost with pad wear automatic compensation device (stable braking torque), short response time ▲ Large installation tolerance: brake disc end face runout, value 0.2mm. Verticality deviation of the base relative to the disc, value 0.4%▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product model: 904SH, YP12.7Applicable disc diameter: Ø D ≥ Ø 500mm● Braking force: 20KN

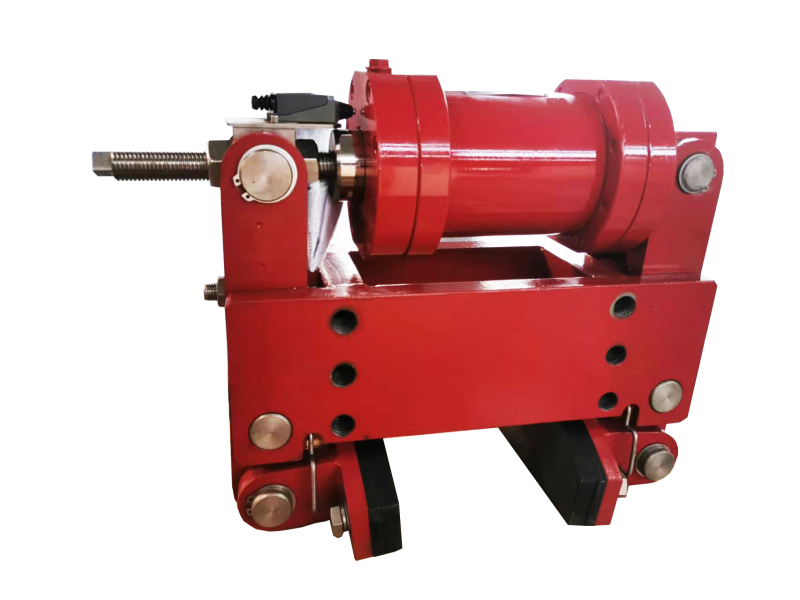

4SH-WD series

Application:Compared with drum brakes, 4SH-15WD and 4SH-30WD disc brakes have the advantages of compact structure, large braking force, and easy installation. They are mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:The technical requirements for disc brakes meet the standards.Main features:▲ High braking force, low maintenance cost with pad wear automatic compensation device (stable braking torque), short response time ▲ Large installation tolerance: brake disc end face runout, maximum value 0.2mm. Vertical deviation of the base relative to the disc, maximum value 0.4%▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: 4SH-15WD, 4SH-30WD● Applicable disc diameter:? D≥? 315mm● Braking force: 1650N-10170N

(450,5,4,3SH) series safety brake

Application:The 5SH, 450SH, 4SH, 3SH series fail safe disc brakes have the advantages of compact structure, large braking force, and easy installation compared to drum brakes. They are mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:The technical requirements of the caliper disc brake meet the standardsMain features:▲ High braking force, low maintenance cost with pad wear automatic compensation device (stable braking torque), short response time ▲ Large installation tolerance: brake disc end face runout, value 0.2mm. Verticality deviation of the base relative to the disc, value 0.4%▲ Optional switches such as opening limit, pad wear, and limit can be used for signal display or interlock protection.▲ High performance asbestos free hard friction pad, stable friction coefficient, does not damage the brake disc, and is insensitive to water medium and salt spray (seawater).Reasonable sealing structure design and imported sealing components. Good effect and long lifespan.▲ Flexible installation location, easy to use, adjust, and maintain.Working conditions:◆ Environmental temperature: -20 ° C to+50 ° C;Relative humidity: ≤ 90%;◆ Optional hydraulic station (see hydraulic station sample for details on hydraulic station selection);When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:Product models: 5SH, 4SH, 3SH, 450SHApplicable disc diameter: Ø D ≥ Ø 315mm● Braking force: 1650N-10170N

EB.EB1 series electric hydraulic thruster

Application:EB.EB1 electric hydraulic thruster is a compact drive control device that integrates an electric motor, centrifugal pump, and oil cylinder. It is widely used as a drive device for various drum brakes and disc brakes, as well as for various industrial valves, gates, directional swing and rotation (<90 °) devices (mechanisms), and clamping devices.Compliance with standards:The Ed series electric hydraulic thruster complies with DIN15430 standard.Main features:The shell is made of cast aluminum alloy, which is lightweight and aesthetically pleasing;The motor is a non oil immersed structure with F-class insulation, good heat resistance, and long service life;The motor junction box cover is sealed and uses cable stuffing boxes for incoming wires, which are firm and reliable. The electrical enclosure protection level reaches IP65;The motor shaft and push rod have undergone special surface treatment, greatly extending the lifespan of the sealing components;The oil cylinder housing is equipped with a balance chamber on one side, which allows the thruster to be installed in any direction from 0-180 °, thereby expanding its range of use;All seals and bearings are made of world-class products, ensuring reliable sealing and long service life.Working conditions:◆ Altitude:<2000m;◆ Environmental temperature: When the temperature is between -20 ℃ and+50 ℃, use DB-25 hydraulic oil. When the temperature is below -20 ℃, use YH-10 aviation hydraulic oil;Relative humidity: ≤ 90%;Work schedule: intermittent (S3-60%) and continuous (S1);Power supply voltage: three-phase AC, AC380 50Hz (other power levels can be customized as needed);◆ Cable: The specification of the power cable is 4 × 1.5mm ², and the cross-sectional area of the wire can reach 4 × 2.5mm ²;When there are special requirements, they should be negotiated and determined during the ordering process.Basic parameters:EB electric hydraulic thruster modelEB220-50,EB300-50,EB500-60,EB800-60,EB1250-60,EB3000-60,EB500-120,EB800-120,EB1250-120,EB2000-120,EB3000-120,EB1 electric hydraulic thruster modelEB1-25/4,EB1-25/5,EB1-40/4,EB1-45/4,EB1-45/5,EB1-4586,EB1-70/5,EB1-90/6,EB1-90/8,EB1-125/6,EB1-125/10,EB1-180/6,EB1-180/8,EB1-180/10,EB1-180/12,EB1-320/6,EB1-320/12,EB1-320/20.Rated thrust: 250-3200NRated travel: 40-200mm
