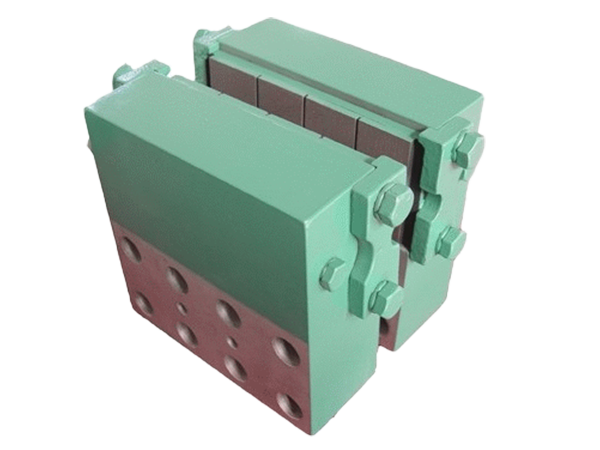

DADH wind power yaw brake

Application:Mostly installed in the yaw mechanism of wind turbines to achieve functions such as yaw damping, anchoring, and cable release.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Normally open design, hydraulic force braking, changes the braking force by changing the hydraulic pressure.;▲ Compensate for friction plate wear by changing the stroke of the piston;▲ Double cylinder symmetrical structure, easy installation, strong interchangeability▲ Compact structure, few exposed parts, good overall corrosion resistance, high reliability, and simple maintenance;▲ High performance friction pads with stable friction coefficient, smooth braking, and low noiseThere are installation baffles on both sides of the friction plate, and replacing the pads does not require removing the brake as a whole, which is fast and convenient.▲ Equipped with a drain port to prevent environmental pollution caused by oil leakage, ensuring safety and environmental protection.▲ Friction pad limit wear indicator can be set for easy observation or implementation of brake status display and interlock protection.Working conditions:Environmental temperature: -40 ℃ to+80 ℃.The monthly average relative humidity of the surrounding air is not greater than 90%.Basic parameters:DADH75 series hydraulic disc brake:Piston diameter (mm): 75Brake disc diameter (mm): ≥ 900Standard brake disc thickness (mm): 30DADH80 series hydraulic disc brake:Piston diameter (mm): 80Brake disc diameter (mm): ≥ 900Standard brake disc thickness (mm): 30

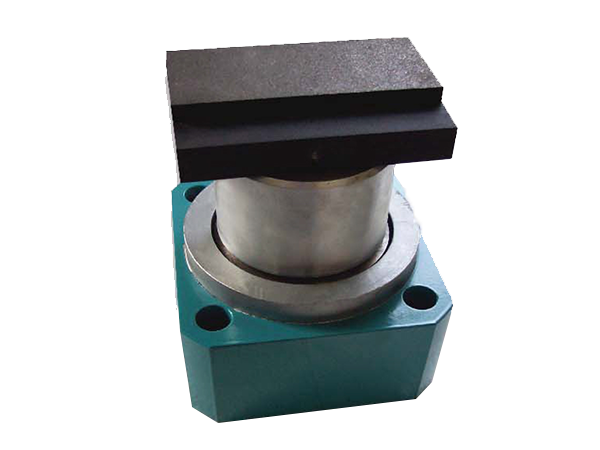

STZD-0125-001 Yaw Brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Storage temperature: -40 ℃ to+85 ℃.Work pressure: 30bar-160bar.Brake weight: 27kg.

STZD-0120-002 Yaw Brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Storage temperature: -40 ℃ to+85 ℃.Work pressure: 30bar-160bar.Brake weight: 170kg.

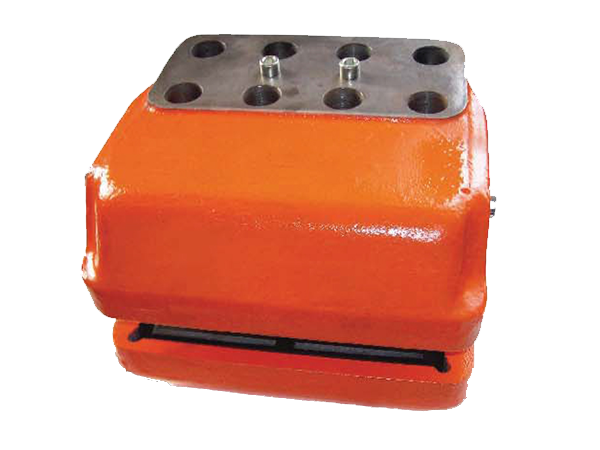

STZD-0090-002 Yaw Brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Storage temperature: -40 ℃ to+85 ℃.Work pressure: 30bar-160bar.Brake weight: 58kg.

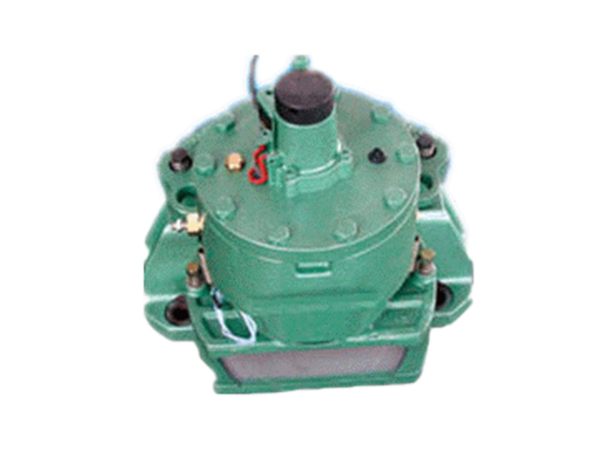

FDZB3 spindle brake

Application:Mostly installed on the high-speed shaft of doubly fed fans for maintenance braking and emergency braking.Main features:▲ Normally open design, hydraulic force braking, spring force releasing, and changing the hydraulic pressure to achieve a change in braking force.▲ Compensation for gasket wear can be achieved by changing the stroke of the piston.The single cylinder floating structure has good adaptability to axial movement of the brake disc within a certain range.▲ Equipped with a positioning mechanism, it can avoid uneven wear of the friction plate in non horizontal installation situations.▲ Compact structure, few exposed components, and good overall corrosion resistance.▲ Small retreat distance, fast response speed; Less moving parts, high reliability, and simple maintenance.▲ Adjustable torque built-in spring with torque scale.▲ The brake pads are plug-in and easy to replace. Provide various materials such as semi metal and powder metallurgy pads to adapt to different working conditions.▲ Equipped with our company's new type of thruster, which is sensitive in action and has a long lifespan.Equipped with a manual release device, the brake can be opened in the event of a power outage.Working conditions:◆ Environmental temperature: Room temperature type -20 ℃~+50 ℃; Low temperature type -40 ℃ to+50 ℃.Low temperature brake hydraulic oil should be able to operate normally at low ambient temperatures.Work pressure: 30bar-160bar. There must be no flammable or explosive gases or media in the surrounding work environment.Brake disc thickness: 15mm-45mmCorrosion resistant products should be used for external rain and snow erosion or corrosive gases and media.

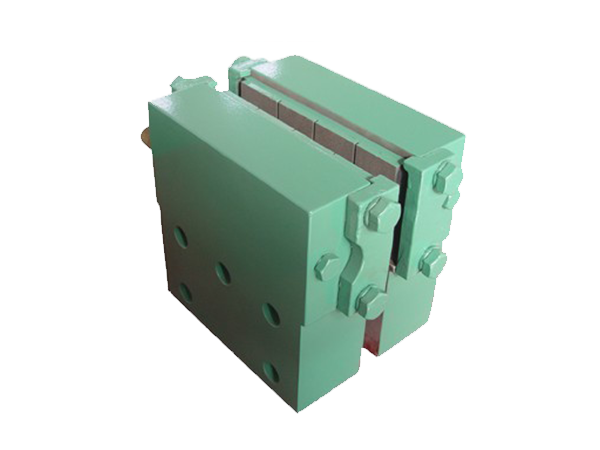

DHD75 yaw brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Work pressure: 30bar-160bar.Brake disc thickness: 30mm-80mm.

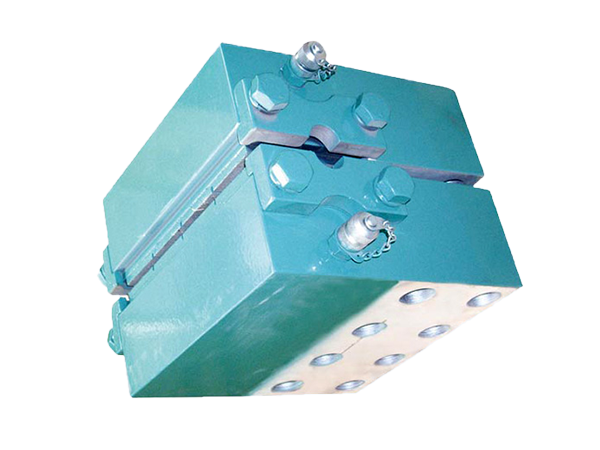

DADH yaw brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Work pressure: 30bar-160bar.Brake disc thickness: 30mm-80mm.

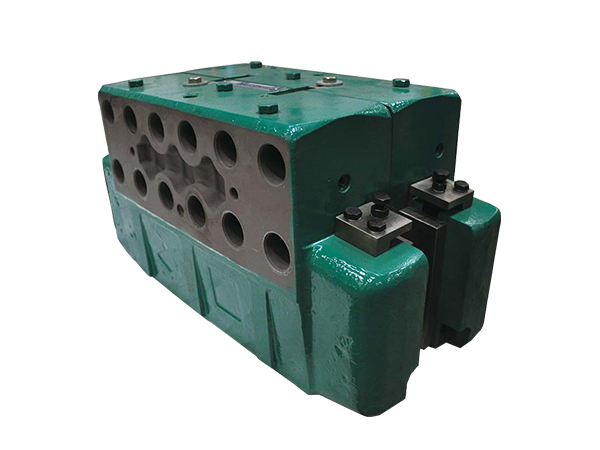

DADH120 New Yaw Brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Work pressure: 30bar-160bar.Brake disc thickness: 30mm-80mm.

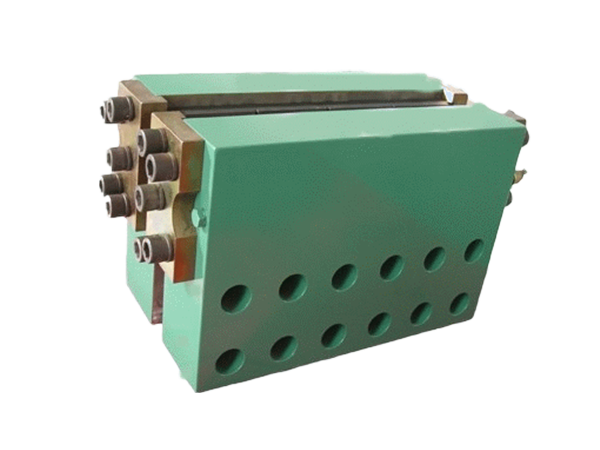

DADH120 yaw brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Work pressure: 30bar-160bar.Brake disc thickness: 30mm-80mm.

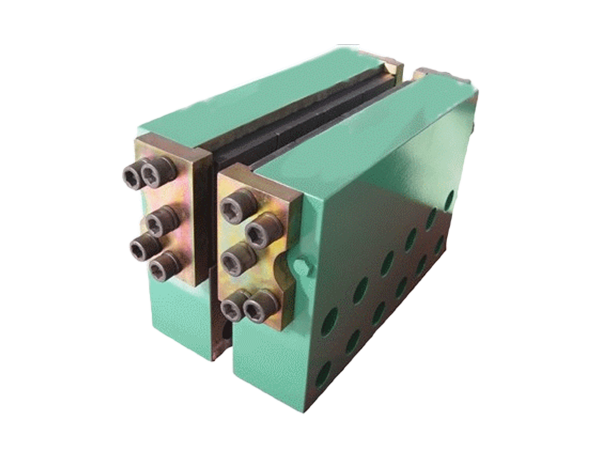

DADH120 yaw brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Work pressure: 30bar-160bar.Brake disc thickness: 30mm-80mm.

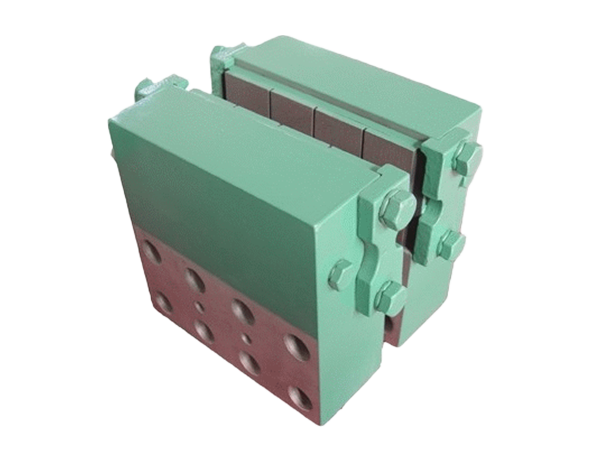

DADH90 yaw brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Work pressure: 30bar-160bar.Brake disc thickness: 30mm-80mm.

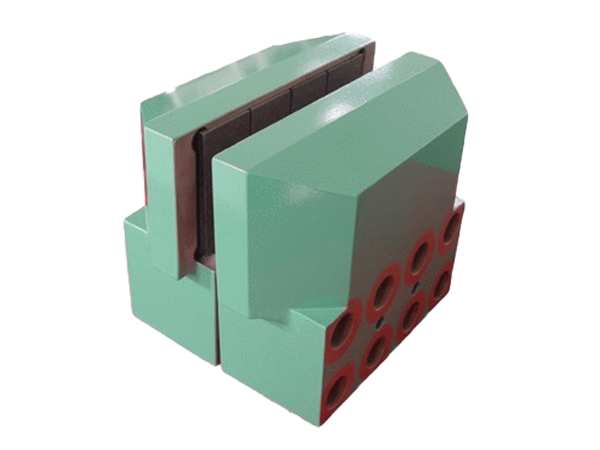

DADH90-C Yaw Brake

Application:Mainly used for separating the yaw brake of generator sets and various mechanical drive supporting mechanical braking or deceleration in industries such as transportation, port loading and unloading, cables, and suspension equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ Adopting a fixed installation design.▲ Adopting a normally open design, the hydraulic station drives the brake, which operates quickly, safely and reliably.▲ High performance friction material with good temperature resistance (up to 300 ℃) and stable friction coefficient.▲ Small braking clearance, short response time, and faster braking.▲ Simple structure, easy installation and maintenance.Working conditions:Environmental temperature: -30 ℃ to+70 ℃.Work pressure: 30bar-160bar.Brake disc thickness: 30mm-80mm.
