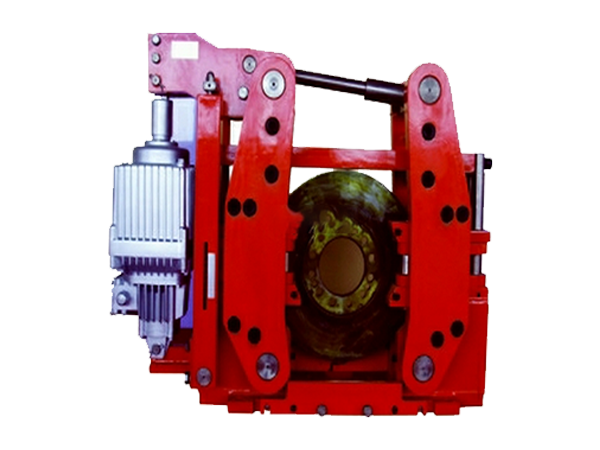

SPZ series symmetrical brake arm disc brake

Application:The SPZ series products are advanced braking products with high performance ratio and multiple functions, widely used for ideal working braking and emergency braking of container cranes, ship unloaders, steel plant casting cranes, water and electricity bridge cranes, ship lifts, cable cranes and other equipment.Compliance with standards:The electric hydraulic disc brake complies with DIN15435 standard and JB/T7020-2006 standard. Equipped with Ed series thrusters that comply with DIN15430 standards.Main features:▲ For the Chinese style structural design, abandoning the traditional arm disc bias, achieving spring force acting on the center, without generating torque on the brake arm, extending the service life of the shaft sleeve, and improving transmission efficiency.The optimization configuration of the transmission system structure realizes the symmetrical braking operation mechanism with a single thruster and dual force application points and dual braking points, achieving a large braking torque in a small spatial position.Simultaneously apply braking force to the brake disc through two symmetrical points to compensate for the radial force generated on the shaft.▲ Design with multiple functional configurations such as convenient manual release device, equal backlash device, automatic compensation for friction plate wear, and display. The friction plate does not require manual adjustment after wear.▲ Normally closed design, (power-off) spring brake, (powered on) thruster release.Working conditions:Environmental temperature: -20 ℃~50 ℃, the altitude of the usage location complies with GB755-2000. When the temperature is below -20 ° C, the working oil of the thruster should be changed to YH-10 aviation hydraulic oil or equipped with a heater as required. Please refer to the Ed thruster sample for details.There should be no flammable, explosive, or corrosive gases in the surrounding work environment, and the relative humidity of the air should not exceed 90.◆ Generally used for three-phase AC power supply: 380V, 50HZ. (According to the needs, 60Hz or different voltages can be produced. Please pay attention to the nameplate of the thruster and indicate in advance when ordering.).Outdoor rain and snow erosion or corrosive gases and media should use anti-corrosion products.Basic parameters:Product models: SPZ-500/E301/8, SPZ-710/E500/12,Applicable disc diameter: 320-710mmBraking torque: 3000-24000Nm

DCPZ series electromagnetic caliper disc brake

Application:The DCPZ series electromagnetic disc brake is widely used for parking or deceleration braking of small and medium-sized drive mechanisms. The tension braking of winding mechanisms, such as the tension control of paper rolls in paper mills, the tension control of news paper during news printing, the tension control of steel plate (steel wire) rolls during unwinding, and the tension control of wire and cable unwinding and cable unwinding.Compliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Compact structure, small size, sensitive action, light weight, and easy to use;▲ Card mounted asbestos free brake pads, green and environmentally friendly, easy and fast to replace;▲ Normally closed design, (power-off) spring brake, (powered on) electromagnetic release.Working conditions:◆ Environmental temperature: -20 ° C to+40 ° C;Relative humidity: ≤ 90%;Power supply voltage: AC 380V, 50Hz;There are no explosive hazardous media, gases or conductive dust in the surrounding working environment that can corrode metals and damage insulation.Basic parameters:Product models: DCPZ □ -250, DCPZ □ -315, DCPZ □ -400Applicable disc diameter: Ø D ≥ Ø 600mmBraking force: 900-2600Nm

561.560.56SE series electromagnetic failure protection brake

Application:Compared with drum brakes, the 561.560.56SE series fail safe disc brake has the advantages of compact structure, large braking force, and easy installation. It is mainly used for mechanical braking or deceleration in various industries such as lifting, transportation, metallurgy, mining, ports, construction machinery, cables, suspension equipment, wind turbines, textile machinery, etcCompliance with standards:The technical requirements for caliper disc brakes comply with JB/T10917-2008 standard.Main features:▲ Strong braking force, similar to working brakes, low maintenance costs, equipped with automatic compensation device for pad wear (stable braking torque), and short response time.▲ Large installation tolerance: Brake disc end face runout, * maximum value ± 0.2mm. The perpendicularity deviation of the base relative to the disc, * maximum value ± 4%.▲ Deviation of the center distance of the brake disc relative to the base, * maximum value ± 2.5mm;Working conditions:There is no gas or dust in the surrounding medium that can corrode metals or damage insulation.The surrounding air humidity is less than 90%.During installation, there should be no oil stains or dust inside the friction disc, friction plate, and brake.▲ Series brake coil insulation level: Class B.▲ The power supply is matched with our company's power box for use.Basic parameters:Product models: 560SE, 561SE, 56SE● Braking force: 640-1600N
